    Mk1 OHLE Type D Structure Kit - 2 Low Masts with 2-Track 130mm Span (SET E16-31)
    Mk1 OHLE Type D Structure Kit - 2 Low Masts with 2-Track 130mm Span (SET E16-31)
    Mk1 OHLE Type D Structure Kit - 2 Low Masts with 2-Track 130mm Span (SET E16-31)

    Mk1 OHLE Type D Structure Kit - 2 Low Masts with 2-Track 130mm Span (SET E16-31)

    Review (0)
    £9.95
    VAT Included
    3-5 Days Dispatch Time

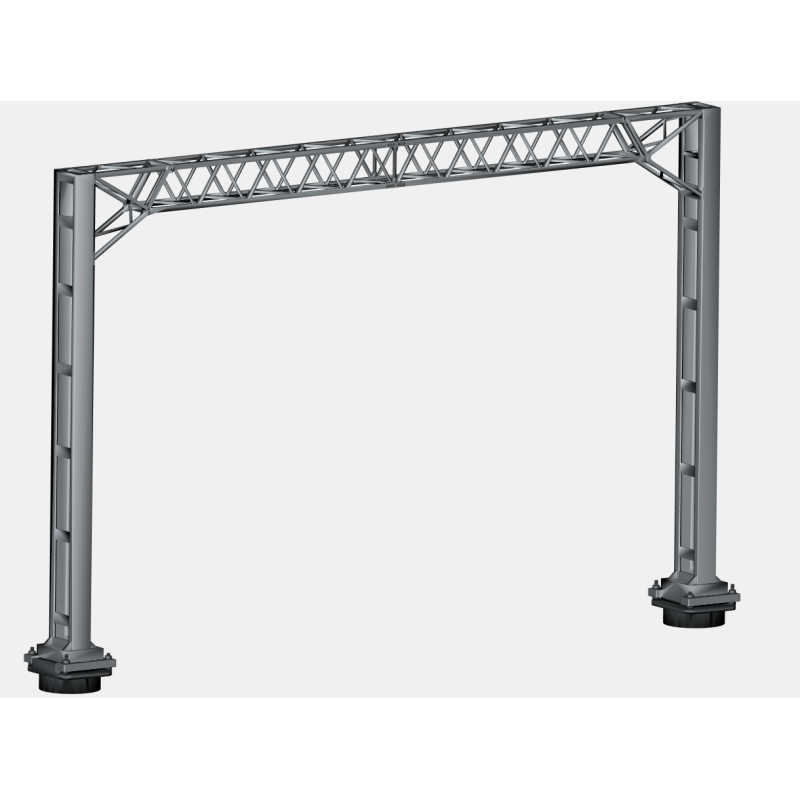

    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Low Mast Structure 2-Track structure,
    Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.
    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
    OO Gauge SET E16-31 - product code 4WH0901631

    Quantity :

    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Low Mast Structure 2-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route.

    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

    OO Gauge SET E16-31 - product code 4WH0901631

    This set E16-31 includes parts to construct One (1) detailed Type D Structure with Low Height Masts that has a span to cater for up to 2 (two) tracks.

    Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

    PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

    Registration Arm and Catenary Wire Supports for the Type D Structure available to Purchase Separately are as follows:-

    SET E16-36 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901636

    All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

    Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

    The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit]

    OHLE Structure kit (SET E16-31) dimensions:-

    Overall height above baseboard (including bases) - 100mm

    Overall length of structure (across the tracks) - 155mm

    Nominal Span distance between inner edge of Bases - 130mm

    Overall width of structure - 14mm

    Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

    Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
