    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)

    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)

    Review (0)
    £13.95
    VAT Included
    3-5 Days Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type F Anchor Portal 4-Track structure,
    Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.
    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
    OO Gauge SET E16-61 - product code 4WH0901661

    Quantity :

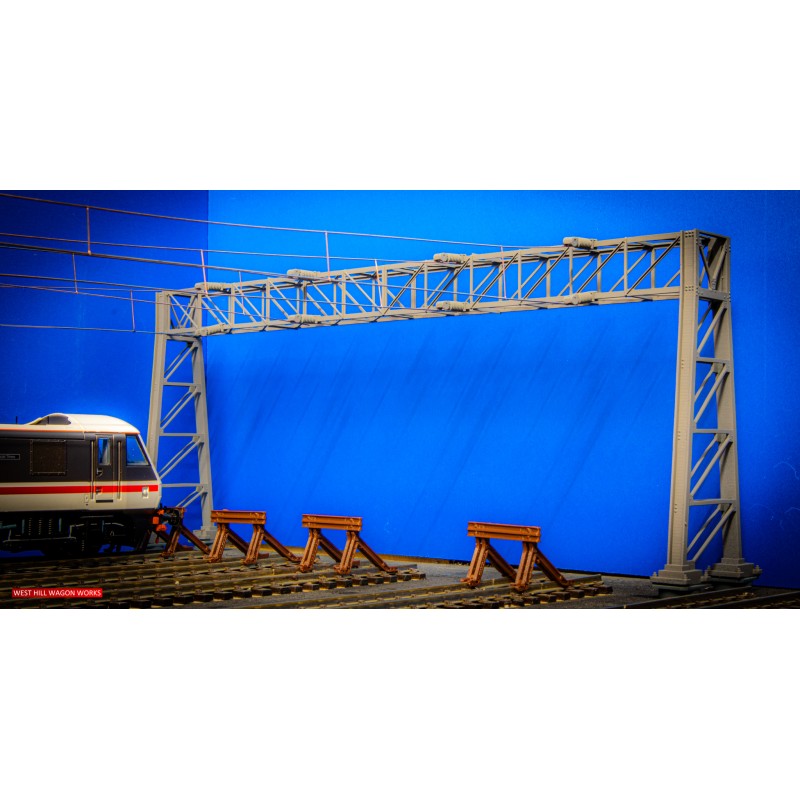

    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type F Anchor Portal 4-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route.

    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

    OO Gauge SET E16-61 - product code 4WH0901661

    This set E16-61 includes parts to construct One (1) detailed Type F Anchor Portal 4-Track structure with Double Frame Masts that has a span to cater for up to 4 (four) tracks.

    Four Mast Bases are included in the kit, with four magnets to fit into two of the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

    PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

    Registration Arms and Wire Anchors for the Type F Structure available to Purchase Separately are as follows:-

    SET E16-66 - Registration Arms and Wire Anchors Set (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901666

    All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

    Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

    The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit]

    OHLE Structure kit (SET E16-61) dimensions:-

    Overall height above baseboard (including bases) - 105mm

    Overall length of structure (across the tracks) - 256mm

    Nominal Span distance between inner edge of Bases - 230mm

    Overall width of structure - 44mm

    Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

    Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    West Hill Wagon Works
    4WH0901661

    Specific References

    No customer reviews for the moment.

    Write your review
    Mk1 OHLE Type F Anchor Portal Kit - 2 Masts with 4-Track 230mm Span (SET E16-61)
