Detailed Pipes and Cables for a Class 33 Locomotive - OO Gauge (SET 24)

This set of brake, steam heat pipes and ETH cables is enough for both ends of one Class 33 Locomotive, the UNPAINTED pack includes:-

2 - Air Brake Pipes (BP)
4 - Main Reservoir Air Pipes (MRP)
4 - Control Air Pipes (CA)
4 - Multiple Working Receptacles for Buffer Beam (MW)
2 - ETH (Electric Train Heating) Jumper Cables (ETH)
2 - ETH (Electric Train Heating) Receptacles (ETH)
2 - Vacuum Hoses/Pipes with hose dummy bracket (VAC)

4 - High Level Brake Pipes Left / Right [for Class 33/1] - (H/L)
2 - High Level Multiple Working Connector Cables [for Class 33/1] - (H/L MW)
2 - High Level Multiple Working Receptacles [for Class 33/1] - (H/L MW)

Also included in this set are four types of Dummy Couplings:-
2 - Dummy Screw Couplings
2 - Dummy Screw Couplings in the Stored Position
2 - Dummy Buckeye Couplers [for Class 33/1] - Dropped
2 - Dummy Buckeye Couplers [for Class 33/1] - Raised

Notes:-

• There may have been variations between members of the Class 33 fleet in pipe configurations, fitting and placement; therefore it is recommended to refer to photographs of the real thing when fitting these parts.
• All pipes will need to be attached with a small amount of adhesive.
• These parts are delicate and may not be suitable for use with couplings fitted, especially on tighter radius curves.

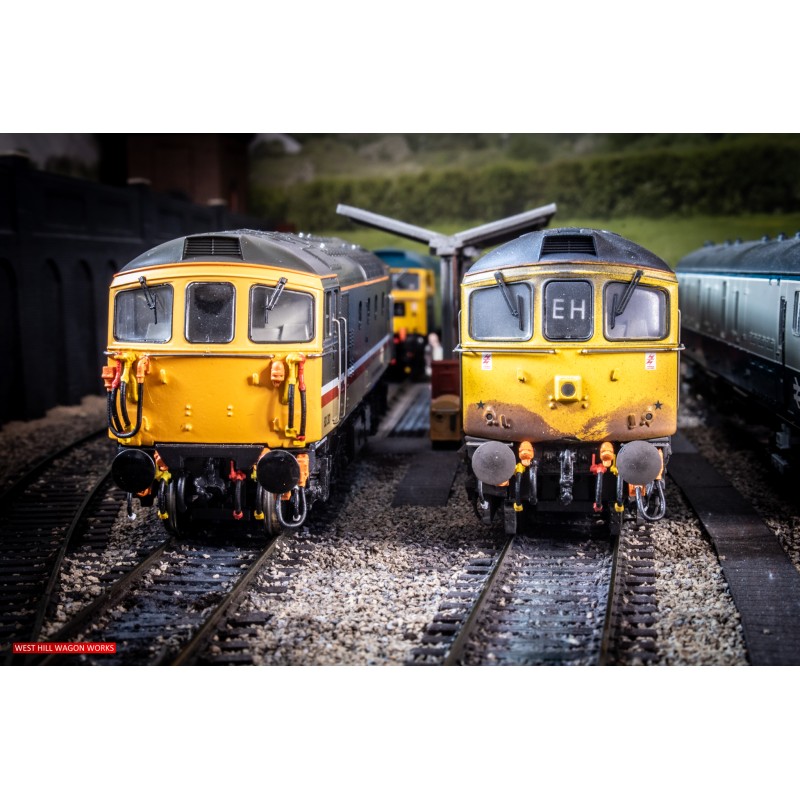

• The pipes are supplied unpainted, please refer to pictures for typical colours.
• Top-Tip - use a light coat of white primer first, and paint the pipes before removing them from the sprue.
• A downloadable fitting guide is provided in the attachment tab above.

(SET Number 24 for Class 33)
